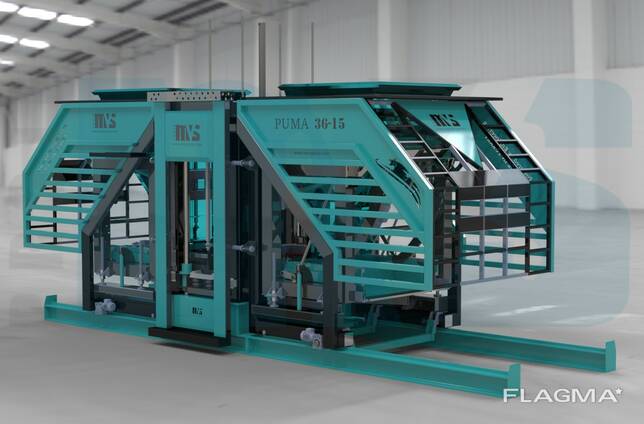

MVS3615 Concrete Block and Paverstone Making Machines

MVS3615 Concrete Block and Paverstone Making Machines
1 / 7
MVS3615 Concrete Block and Paverstone Making Machines - photo 1 MVS3615 Concrete Block and Paverstone Making Machines - photo 2 MVS3615 Concrete Block and Paverstone Making Machines - photo 3 MVS3615 Concrete Block and Paverstone Making Machines - photo 4 MVS3615 Concrete Block and Paverstone Making Machines - photo 5 MVS3615 Concrete Block and Paverstone Making Machines - photo 6 MVS3615 Concrete Block and Paverstone Making Machines - photo 7
Renewed: 18 March 2020, 10:14 ID: 22458
Price on request
Flagma member since 12 September 2019
Seckin Volkan
Seckin Volkan
founder

Description

Machine Operation System:
Full Automatıc System -Semi Automatıc System- Manual System.
Machine Produce Capacity:Automatıc System: 150-180 Pallet / h,
Semi Automatıc System: 100-120 Pallet / h, Manual System: 60-80 Pallet / h
Machine Weight: 20 ton
Pump Powers: Automatıc System:30kw 120 lt+4kw19lt+11kw+59lt / dk22kw, Semi Automatıc System:60 lt+4kw19lt / dk, Manual System:
20kw 59 lt / dk
Hydraulic Oil Capacity: 1000 lt
Bunker Capacity: 2000 dm³
Machine Dimensions: 2900x8000x2700 mm
Upper Vibration Power: 0,72 kw x 4 pieces
Lower Vibration Power: 4 kw x 6 pieces
Total MachinePower Usage:Automatıc System:71,8kw, SemAutomatıc System:52,8kw, Manual System:46,8kw
Minimum Product Height :60 mm
Maximum Product Height: 300 mm
Vibration Press Power: 70kN
Press Capacity: 7500kg-100bar
The Number Of Product on a Pallette: 36 pieces interlock – 15 pieces 200x400x200 mm blocks
Wooden Pallet Dimensions: 1400x1200x45 mm
Mixer Capacity:1000m³

All products are covered by 3 years warranty.
Installation and training are free of charge.
