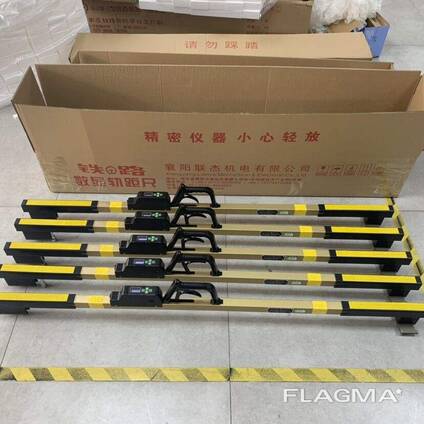

Digital switch track gauge for turnout track gauge level measuring

Digital Track Gauge
Digital switch Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance, flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
Features
1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CRCC , CE certificate.
Specification
Model(1435mm)
GJC-TJG1
Track gauge(mm)
1384-1470
Gauge rail check gauge(mm)
1364-1450
Guard rail face gauge(mm)
1344-1430
Superelevation measuring range(mm)
-200~+200
Flangeway Clearance(mm)
20-107
Superelevation division value(mm)
0.10
Track gauge division value(mm)
0.1
Track gauge max indication error(mm)
±0.25
Superelevation error(mm)
±0.45
Application rail line
railway speed less than 250km/h
